Simple Music Reactive LED Light Circuit

{tocify} $title={Table of Contents}

Introduction:

The Music Reactive LED Circuit is a simple and engaging way to visually represent sound, often used in sound-responsive decorations, DIY electronics, and audio visualizers. This circuit uses a microphone to detect sound, amplifies the audio signal using transistors, and drives an array of LEDs that light up in sync with the rhythm of the music. The circuit is ideal for beginners in electronics, as it combines fundamental components like transistors, resistors, capacitors, and LEDs to create an interactive output.

Component Details:

S.No	Components	Value	Qty.
1.	Transistor	BC547, C1815	1, 1
2.	Capacitor	1uf/25V	1
3.	Resistor	1M, 100K, 5.6K	1, 1, 1
4.	Microphone	-	1
5.	LED	Red, Green, Blue	1, 1, 1
6.	Battery	9V	1

Bc547 Pinout:

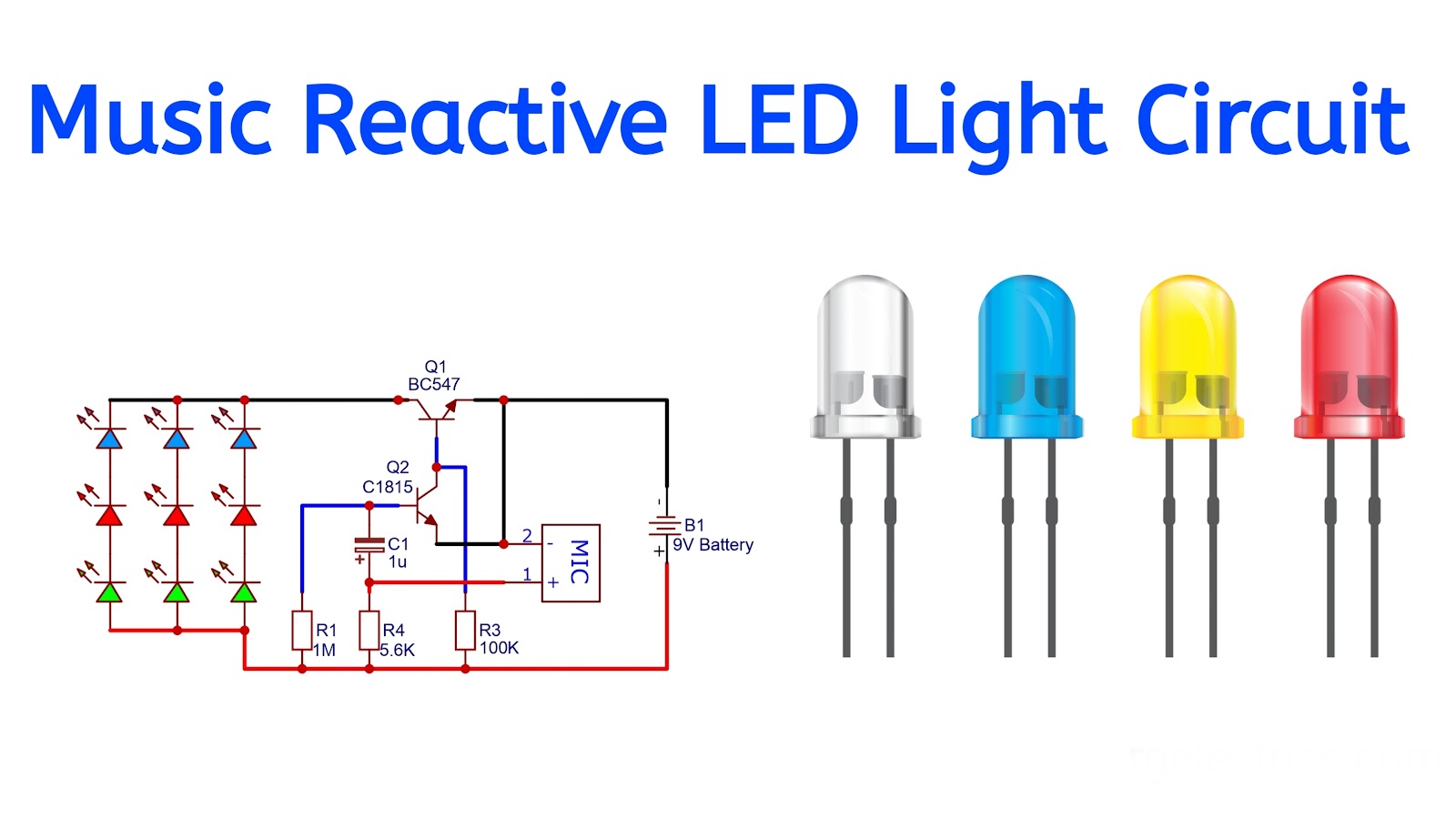

Circuit Diagram:

Working Explaination:

1. Microphone (MIC):
   The microphone is an essential input component that converts sound waves into a small electrical signal. The microphone is connected to the base of transistor Q2, which amplifies this weak signal.
2. Transistors (Q1 - BC547 and Q2 - C1815):
   Both Q1 and Q2 are NPN transistors that serve as amplifiers. Q2 (C1815) receives the low-level signal from the microphone and provides the first stage of amplification. The amplified signal is then passed to Q1 (BC547), which further boosts the signal to a level sufficient to drive the LEDs. These transistors essentially act as signal amplifiers, making weak audio signals strong enough to trigger visual feedback from the LEDs.
3. Capacitor (C1 - 1uF):
   The capacitor serves as a coupling element, allowing only the AC component of the signal (which corresponds to the sound) to pass while blocking any unwanted DC components. This ensures that only variations in the sound intensity are used to drive the LEDs, preventing unwanted steady lighting.
4. Resistors (R1, R3, R4):
   • R1 (1MΩ): This resistor limits the current to the microphone, protecting it from being overloaded by excessive current.
   • R3 (100KΩ) and R4 (5.6KΩ): These resistors are part of the biasing network for the transistors. They ensure the transistors are properly biased for amplification, ensuring the circuit responds well to audio signals.
5. LED Array: The LEDs are connected in multiple branches, with each LED lighting up in response to the amplified signal from the transistors. The louder the sound, the greater the voltage across the LEDs, causing more LEDs to light up. The different colored LEDs (red, green, blue) create a visual representation of the audio intensity.
6. Power Supply (9V Battery):
   The circuit is powered by a 9V battery, providing the necessary voltage for both the amplification stage and the LED lighting. The positive terminal of the battery is connected to the LED circuit, and the negative terminal completes the circuit by connecting back to the microphone and transistor stage.

How It Works:

When sound waves hit the microphone, it generates a small electrical signal proportional to the sound's intensity. This signal is then amplified in two stages: first by Q2, then by Q1. The amplified signal drives the LEDs, causing them to blink or glow in response to the sound. The circuit responds to varying audio levels, with louder sounds lighting up more LEDs or causing them to flash more brightly.

This music-reactive LED circuit is simple but provides a captivating visual effect, making it popular in music-themed projects and light displays.

Applications:

1. Audio Visualizers
2. Sound-Activated Decorations
3. Party Lights and Event Lighting
4. Sound-Reactive Wearables
5. Ambient Lighting Systems
6. DJ and Stage Lighting
